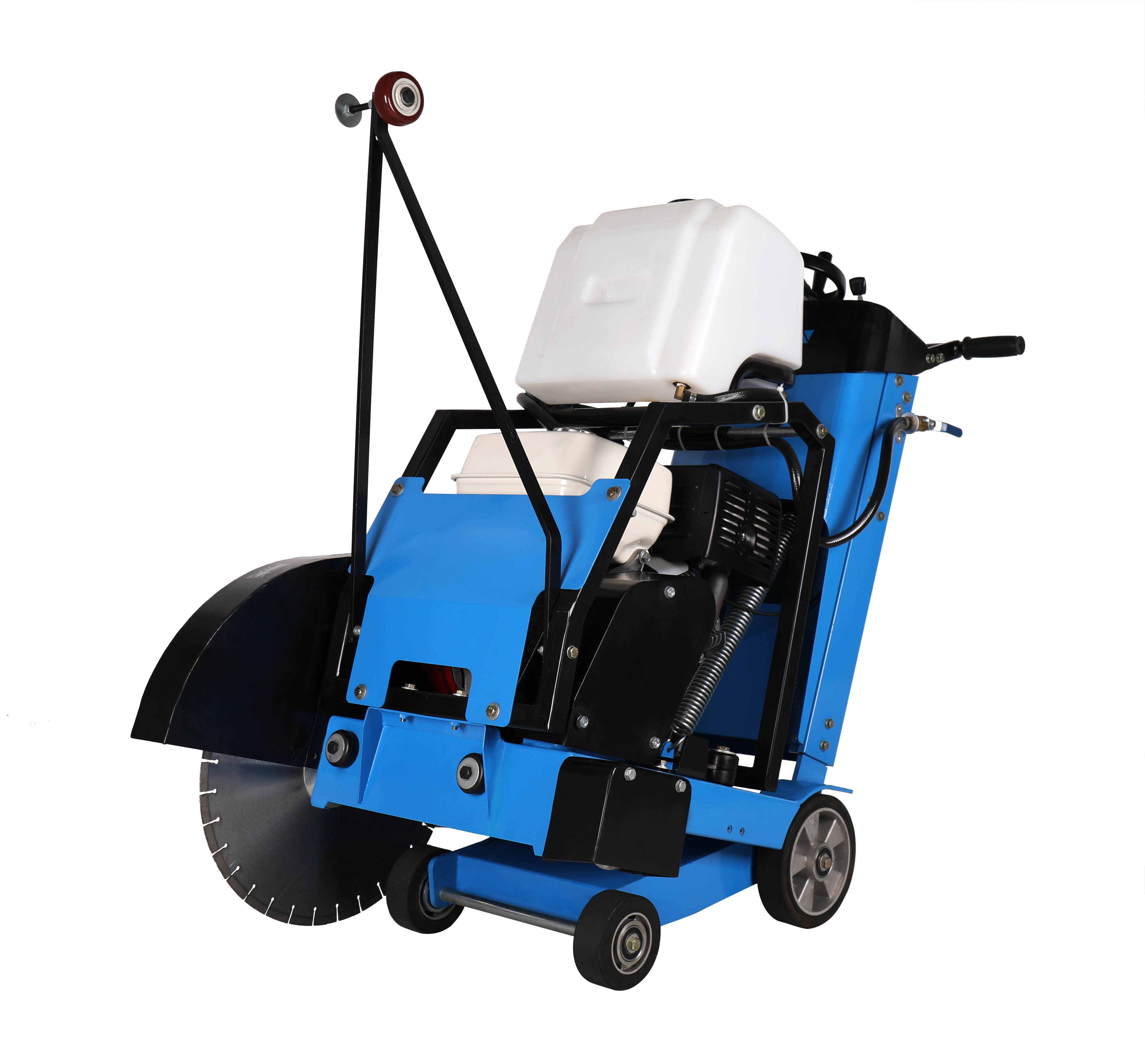

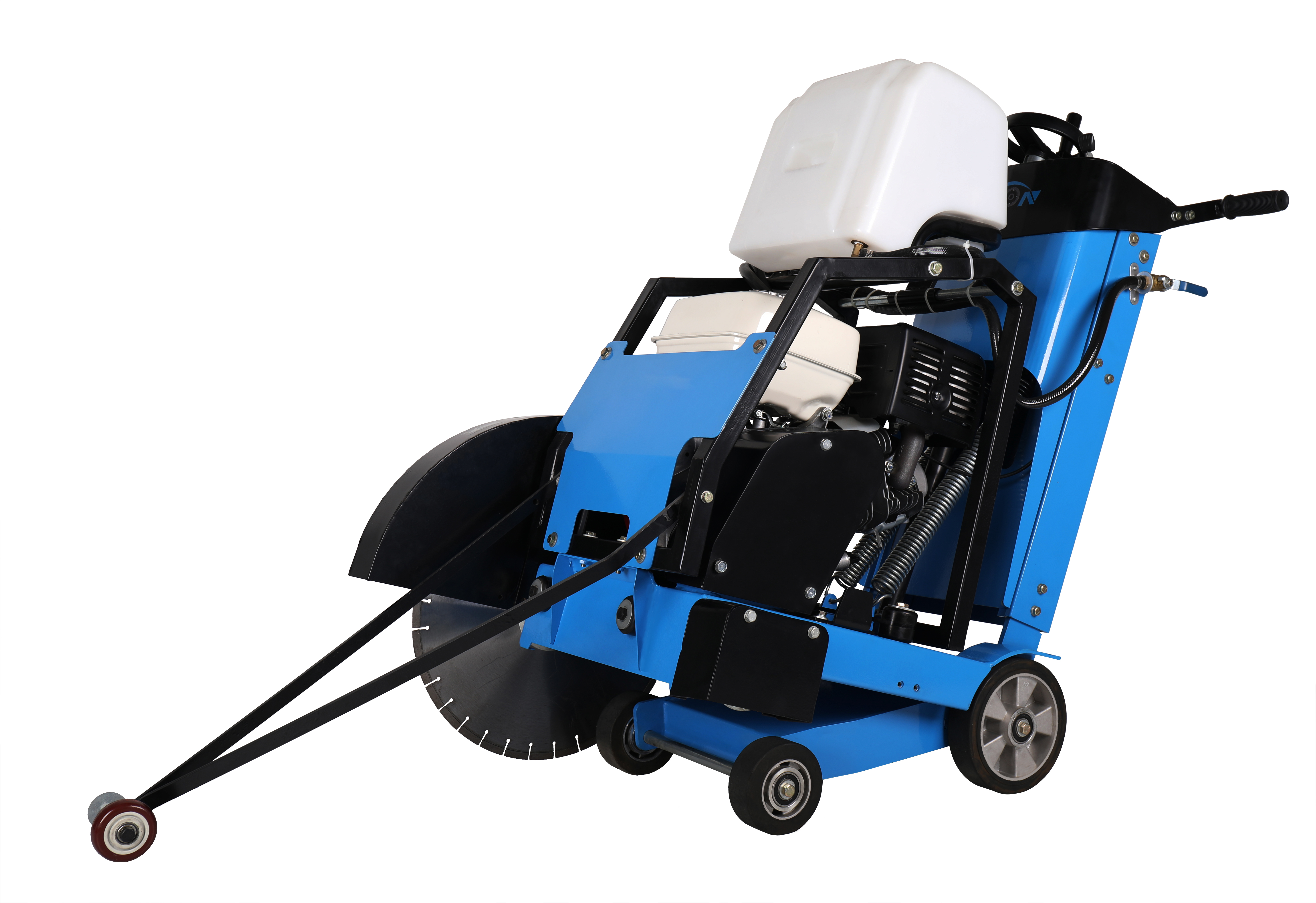

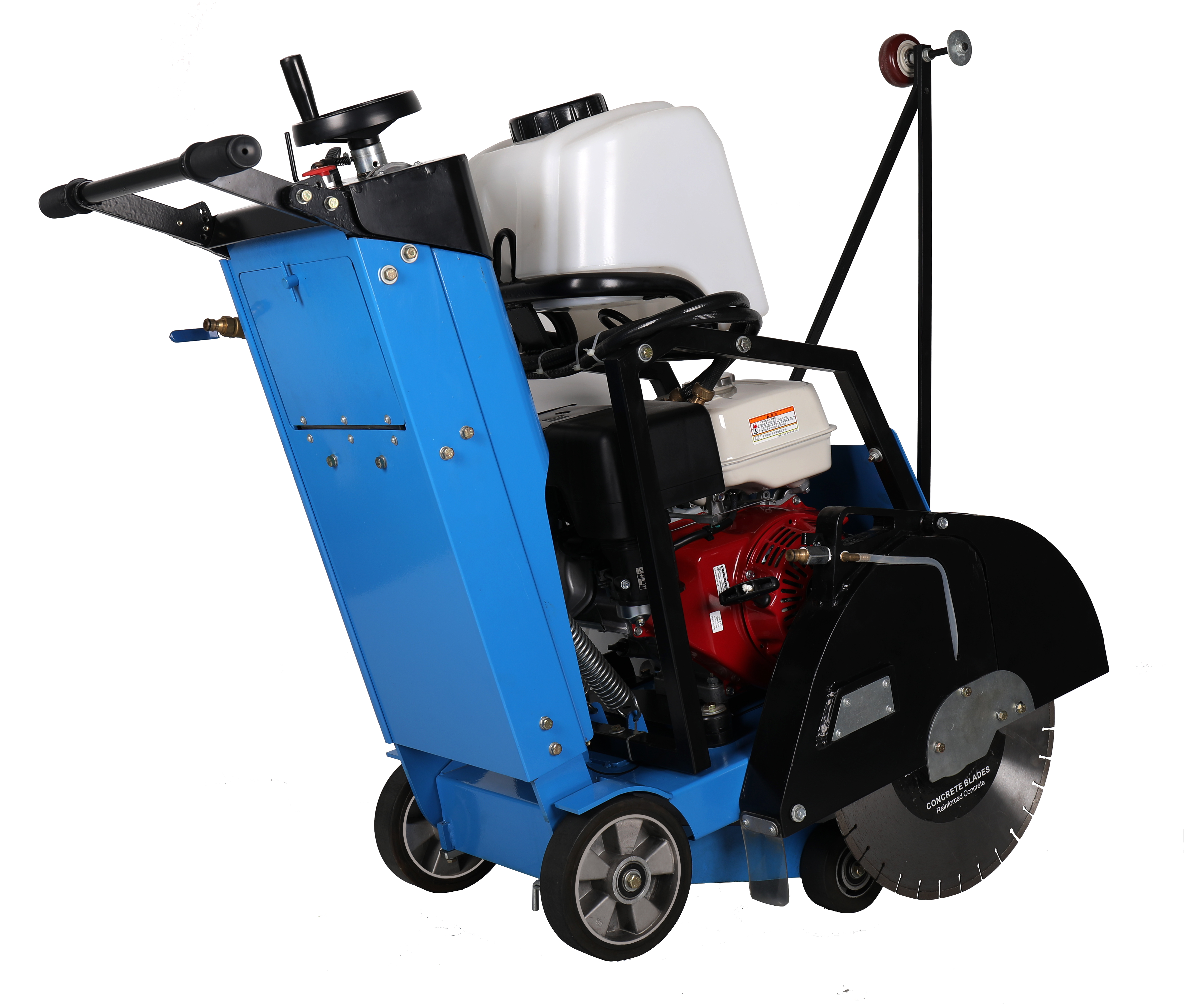

DFS-500 Diamond Saw Cutting Machine for Concrete Floor

It is a robust petrol driver floor saw with max cutting dept 190mm, accept 500mm (19.6inch) diamond saw blades as the biggest capacity.
  • DFS-500

Availability:

The handle is adjustable which means a great guarantee for the ergonomic working position. A professional floor saw road cutter for light cuts and repair jobs in concrete and asphalt. The significant friction generated in cutting hard substances like concrete requires the blades to be cooled to prolong their life and reduce dust.


Ideal for short-run slab cutting, crack control joints, patching, trenching and traffic loop installation, this 18" saw can help complete your job safely and efficiently. This floor saw has smooth operations and precision controls.


Main Features:

1. Easy to operate: productive and professional with supreme weight distribution and stability.

2. New design: heavy-duty performance but with a compact design

3. Less vibration in usage: engine and blade are mounted well. The mounting system provides comfort and gives the wonderful cutting performance.

4. Adjustable handles: for a better and closer position to the cutting side. It can help the machine cut floors easier in alignment and straight.

5. Protect to saw blades: the saw blades can be raised and lowered smoothly by a spindle. Also, the blade guard equipped. It extends the service life of saw blade, decrease the risk of wrap, being out of shape and other damages in using.

6. Front guide in floor saw: it helps to cut in straight line.

7. 25L water tank: large capacity helps to reduce interruptions in work. Nozzle helps to water smoothly.

8. Standard flange spraying: provide a longer service life for diamond blades.

9. Equipped with standard saw blade flange.

10. Optional engines: it is available to have Honda GX390, Chinese petrol engine.

Model

DFS-500

Art number

1511500

Max. Blade Capacity

500mm

Max. Cutting Depth

190mm

Blade Speed

2800RPM

Depth adjustment

Handle rotation

Driving

Semi‐self propelled

Water tank

25L
